TD-ST-ROOF 24 x 18m

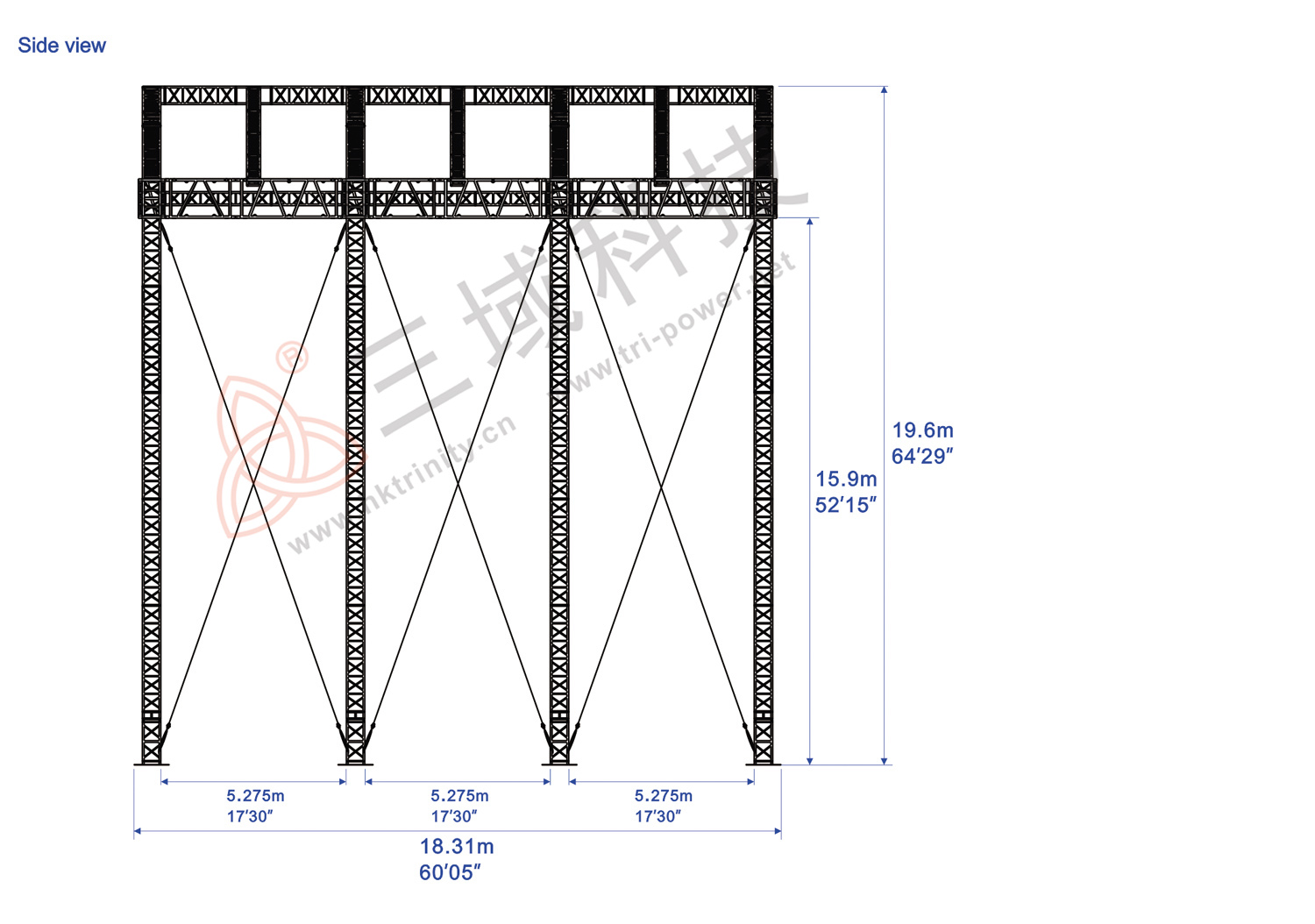

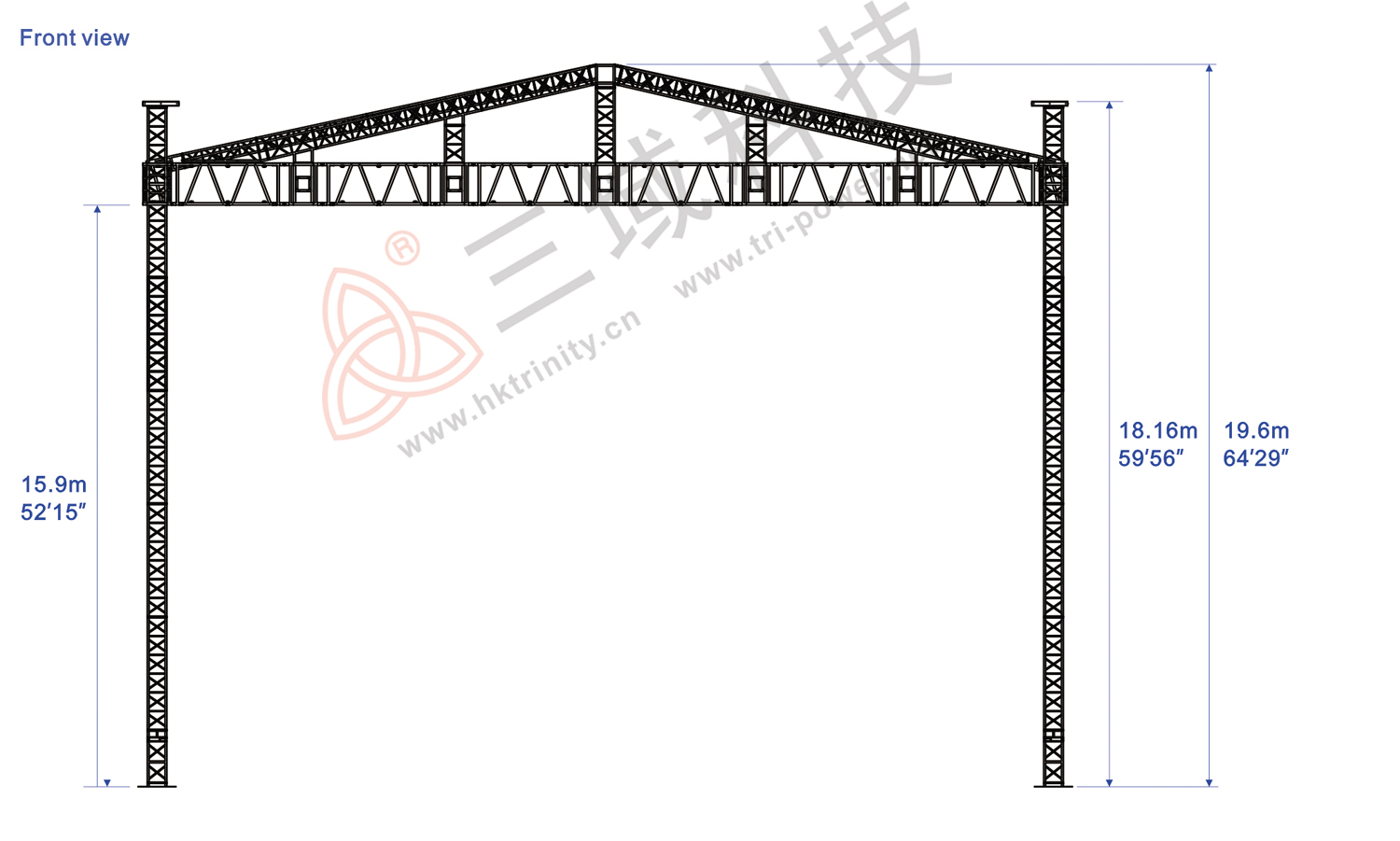

This is one of our Roof Systems, model TD-ST-ROOF 24 x 18m, covering an area of 449 sq. m. and as high as 19.6 m., suitable for outdoor concert performances and other activities. The structure is built with our trusses, models TD-QC112RF-60,
TD-BC52S, TD-B40S and others supporting accessories.
The ceiling employs high tension 0.83 kg/sq. m vinyl-coated polyester to achieve rain-proof function.




For more details, please download [the file] [ROOF.zip]
