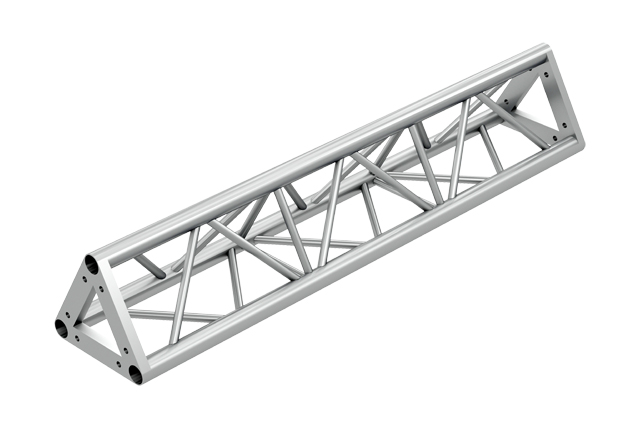

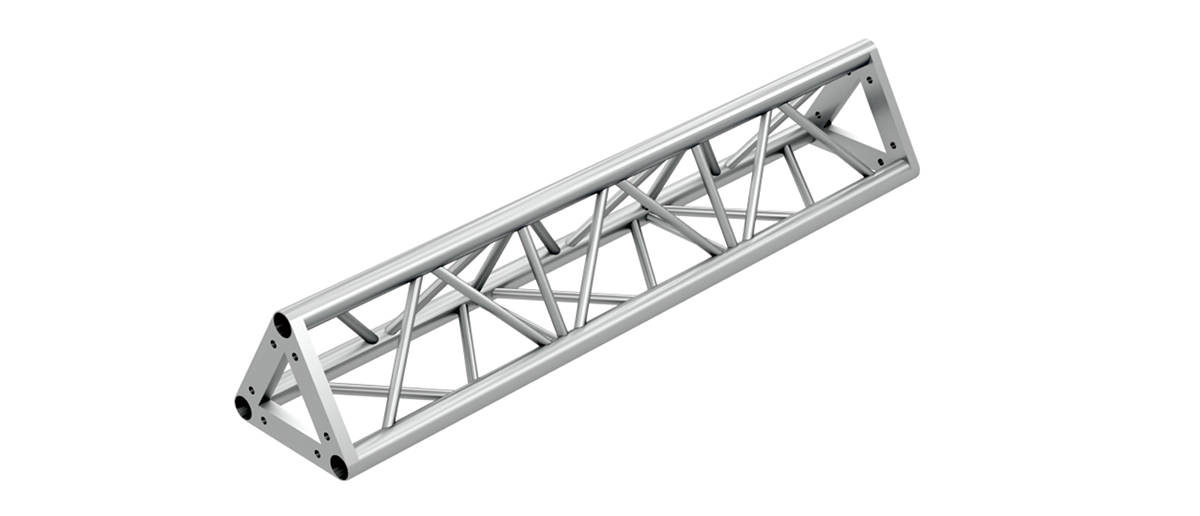

TD-B30T


Bolt Mounted  Series



   TD-B30T

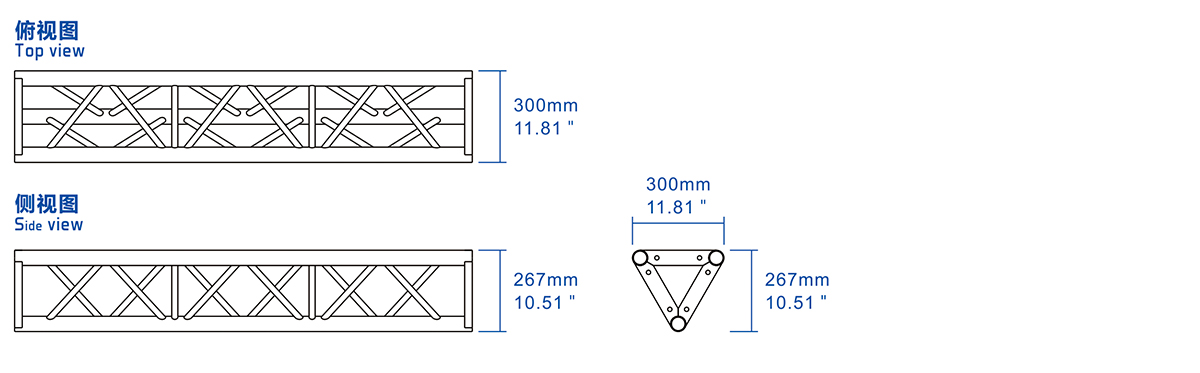

 Dimensions
 Shape  Triangle  Triangle
 Material  EN AW 6082 T6  EN AW 6082 T6
 Main Tubes  50 x 3 mm   1.97 x 0.12 in
 Braces  20 x 2 mm

 0.79 x 0.08 in


 Weight  ≈ 5.8 kg/m  ≈ 3.90 Ibs/ft
 1 inch = 25.4mm   1 m =3.28ft    1 Ibs = 0.453kg




For more details, please download [the file] [TD-B30T]
